I-Flame Series B486
When the fire is ignited, the taste bud is aroused.
Model: JZ(Y/T)-B486

Start with a touch of button new image of kitchen

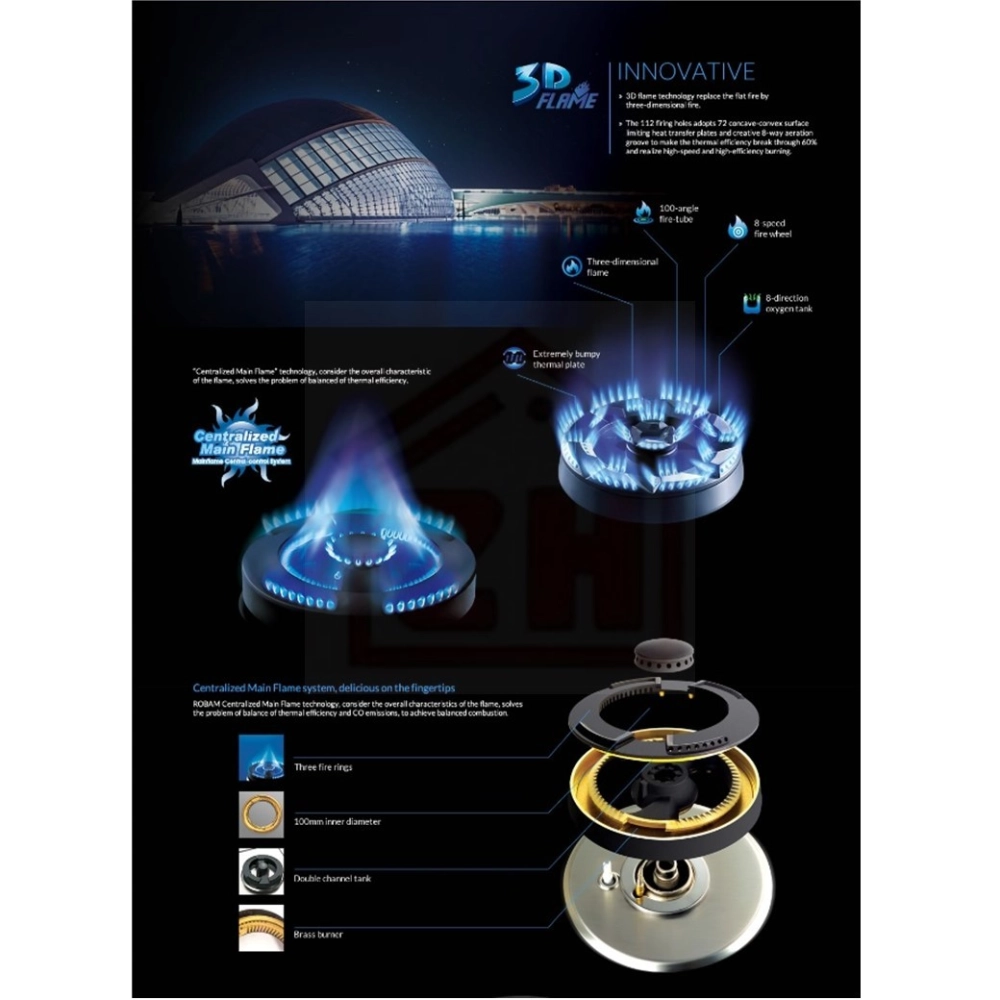

*3 level of fire channels are allocated into 3 different heights.
*Balanced heating to rule out vacant spot.
*High density of fire holes leading to stronger fire.
*Strong but balanced and stable fire.
*Either frying or cooking, all are taken care of in minutes.
*Flame out protection device to guarantee a safe operation.

*Tempered glass panel particularly designed for easy cleaning and organizing.
*C type easy-cleaning dish designed with no dead space but simple to clean.

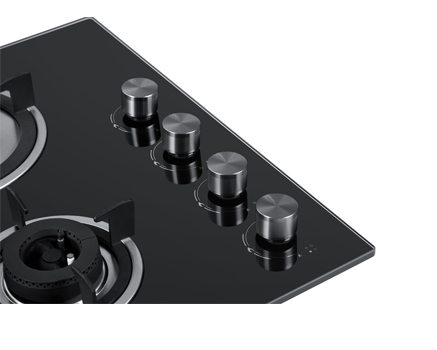

*Whorl metal knob controls all delicacy.
*Dull polished ceramic grill thoughtfully designed to prevent the slippery.

*Copper base.
*Movable burner.
*Bionic convection holes.
*Anti backfire shield.
| Heating load | 4.2×2、1.6×2(kw) |
| Thermal efficiency | See the label |
| Product size | 700×525×154(mm) |
| Installation size | 655×478(mm) |
| Net weight | 17.3kg |
| Panel | Tempered glass |
| Gas burner | 4 |
| lgnition method | Pulse |
| Air in flow | Full |
| Gas style | Natural gas、Liquefied gas |
| Gas connector | φ9.5mm special gas rubber gasket |
